UHD 10mm Outdoor LED Display – Commercial-Grade, Budget-Smart Performance
Our UHD 10mm Outdoor LED Display is engineered for businesses and organizations that need excellent image quality, vibrant color, and long-term reliability—without the premium price tag.
With a 10mm pixel pitch, this display delivers the ideal balance of resolution and value, making it a go-to solution for outdoor LED signs and full-color digital billboards. It performs exceptionally well across a wide range of sizes, from compact 3x6 displays to large-scale billboards and spectaculars, all while maintaining crisp visuals and strong daylight visibility.
Designed for versatility, this display is an excellent fit for:
- Schools & universities
- Auto dealerships
- Retail & restaurants
- Hospitality & entertainment venues
- Churches & government signage
Powered by advanced DCI-P3 color calibration and premium electronics, your content appears bright, accurate, and life-like, ensuring your message stands out in any environment. The system is also built for maximum uptime, reducing maintenance and service interruptions compared to lower-grade alternatives.
To keep your display running smoothly, this solution includes cloud-based control and cellular connectivity, allowing for always-on performance, remote content management, and simplified servicing. The modular design makes installation and future maintenance fast and cost-effective.
Bottom line: this UHD 10mm Outdoor LED Display delivers professional-grade performance, dependable operation, and stunning visuals—making it one of the smartest investments for outdoor digital signage.

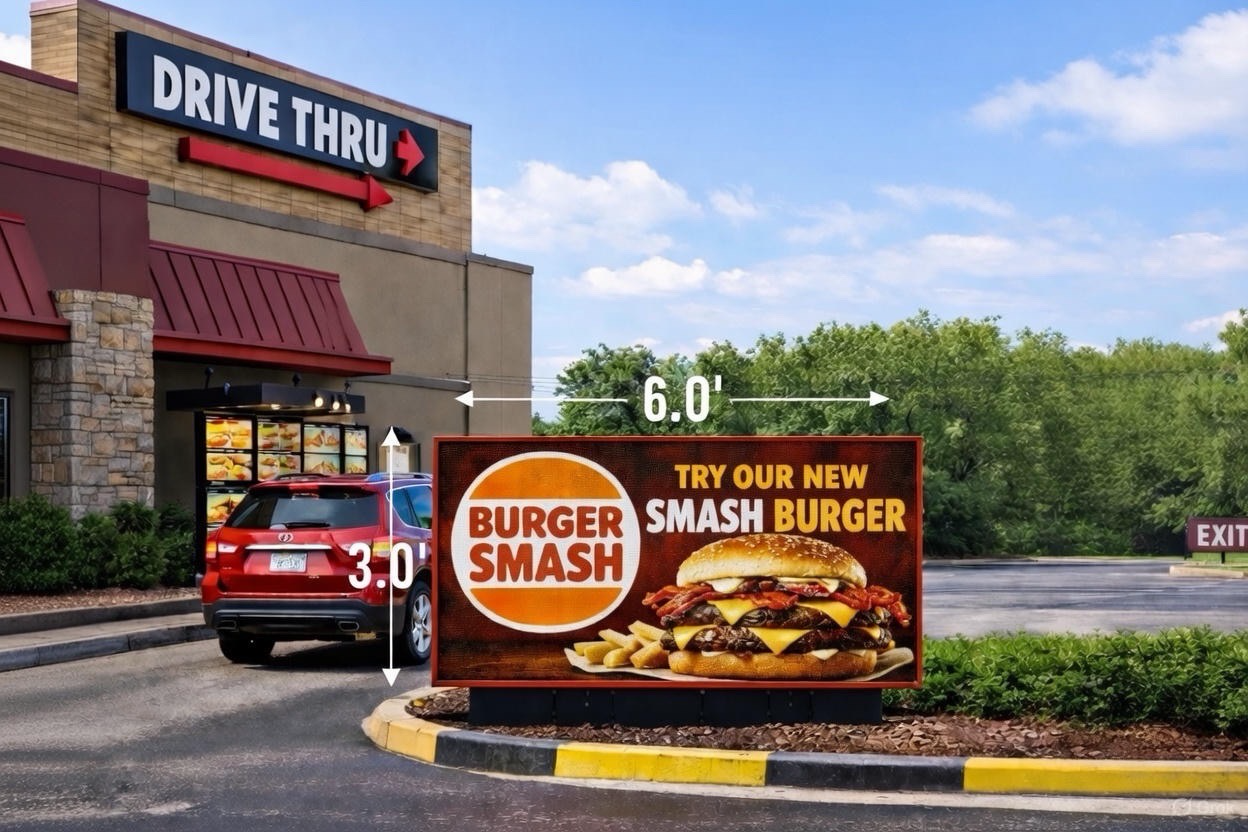

Technical Specifications – UHD 10mm Outdoor LED Display (3’ × 6’)
Display & Size
- LED Pixel Pitch: 10 mm
- Sign Size: 3 ft (H) × 6 ft (W)
- Approx. Diagonal Size: 80 inches
- Screen Resolution: 96 × 192 pixels
- Total LED Pixels: 18,432 pixels
- Viewing Angle: 140° (H) / 100° (V)
Cabinet Details
- Cabinet Size: 915 mm × 1830 mm
- Cabinet Material: Aluminum
- Pixels per Cabinet: 2,048
- Weight per Cabinet: 18 lbs
- Total Screen Weight: 162 lbs
Brightness & Image Quality
- Brightness: 10,000 nits (daylight visible)
- Display Colors: 281 trillion colors (16-bit)
- Refresh Rate: ≥ 7680Hz
- Driving Mode: 1/4 scan
Power & Electrical
- Avg. Cabinet Power: 40 W
- Max Cabinet Power: 155 W
- Total Power Requirement: 1,395 W
- Input Voltage: 110V – 240V
- Electrical @ 120V: 12 amps
- Electrical @ 240V: 6 amps
Durability & Control
- IP Rating: IP68 (front & rear)
- Software: Smart LED Cloud
- Data Connection: Cat6 (Ethernet)
